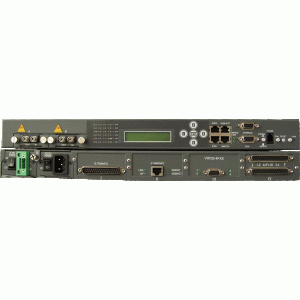

AN-FM-600
AN-FM-600 Modular Integrated Transmission Multiplexer can provide full speed 100Mbps fast Ethernet (FE) interface in accordant with IEEE802.3 and E1 interface complying with 16-channel standard. At the same time, it also provides sufficient network management interface function and realizes SNMP network management or device management via hyper terminal.
Nội dung bài viết [hide]
SNMP managed, LCD console equipped, carrier class double 155 Mbit/s fiber multiplexer with modular service cards approach: n x E1, n x V.35. n x Ethernet at your choice.
AN-FM-600 Modular Integrated Transmission Multiplexer can provide full speed 100Mbps fast Ethernet (FE) interface in accordant with IEEE802.3 and E1 interface complying with 16-channel standard. At the same time, it also provides sufficient network management interface function and realizes SNMP network management or device management via hyper terminal. The device itself is supplied with a LCD displayer for user to carry out configuration and management. The whole system adopts modularized structure. 16 channels of 2M services are divided into four modular slots, with four channels for each. Different interface modules can be applied based on networking requirements of different users, and different user requirements for application environment and business growth can be met through addition or replacement of interface modules. The equipment can cater to the network application of general scale.
AN-FM-600 multiplexer provides double 155Mbit/s optical interfaces and sixteen 2048 Kbit/s channels. The 16 channels are distributed to 4 ports, each port supports 4×2048 Kbit/s channels. The 4 ports can be deployed as either 4×E1 or 4×V.35 or modules. And a 10/100Base_T transparent Ethernet channel is provided as well. All the modules are removable and hot swappable. With high-integrated design and advanced technology, this equipment runs with its superior quality and reliable performance.
Modular integrated transmission optical fiber multiplexer is created with optical path interoperability, flexible structure and modular design. Its function modules are independent of each other but easy for assembly, which enables it to derive a series of optical multiplexer products with multi-service interfaces. The equipment is furnished with four modular slots. According to the networking requirements of different users, various kinds of interface modules can be employed. Users can also add or replace interface modules to accommodate to the requirements of different application environments to protect their existing investment. Meantime, the equipment allows users to activate expandable interfaces to adjust the scale of network interfaces based on business growth, so as to help realize real-time follow up of network to business.
Following example configuration can be made at your convience, though, you can feel free to experiment at your own choice:
Unit comes together with a sophisticated network management system, supporting SNMP management through the SNMP agent. The MIB offered together with the SNMP module enables the management through operator’s existing SNMP software.
Network management Unit is designed to control all settings on the control panel and to realize communications between multiplexer and computer. The unit can send commands (such as alarm-off, remote bypass loop-back and so on) to nodes through computer. Users can directly query and set the status of a pair of devices with Hypber Terminal software Via RS232 crosswire. NM-ETH interface (10/100M auto-negotiating, to be configured) can be directly connected with a computer via a crosswire or with a HUB via a straight-through wire to fulfill management. It can realize ALS (Automatic Laser Shutdown/Automatic Laser Reduction) to prevent personnel from fiber injury. The user can select network management functions according to its actual requirements.
| AN-FM-600 |
4-8-16*E1(optional)+2*10/100 Base-T Multiplexer,4 MST slots,1*Official phone ,1* Optic interface,FC 40Km,220V or -48V,SNMP network management,1+1 Optical interface(optional) |
| 600-M4 |
4*E1 module,75ohm or 120ohm |
| 600-2V35 |
2*V.35 module, 2M,(Unframed) |
| 600-4V35 |
4*V.35 module, 2M(unframed or framed) |
| 600-4FXO/FXS |
4*FXO/FXS module |
| 600-8FXO/FXS |
8*FXO/FXS module |
| 600-4RS232/485 |
4*RS232/485 module |
| 600-FC401 |
1+1 Optical Redundancy Backup module,FC 40Km |
| 600-DATA |
1* RS232/485 Data |
