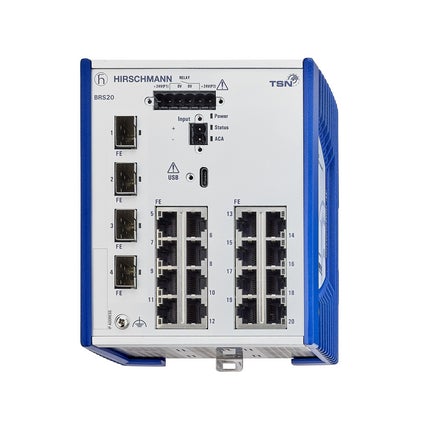

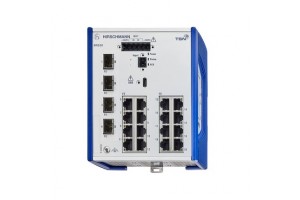

BRS20-16TX/4SFP
BRS20-16TX/4SFP Hirschmann Switch công nghiệp 16 cổng 100M Ethernet, 4 cổng 100M quang ; 1. Uplink: 2 cổng 100M quang SFP ; 2. Uplink: 2 cổng 100M quang SFP
Nội dung bài viết [hide]
Switch Hirschmann BOBCAT là thiết bị đầu tiên cho phép giao tiếp thời gian thực bằng TSN. Để hỗ trợ hiệu quả các yêu cầu giao tiếp thời gian thực ngày càng tăng trong các môi trường công nghiệp, một mạng lưới Ethernet mạnh là cần thiết. Thiết bị chuyển mạch có quản lý nhỏ gọn này cho phép mở rộng khả năng băng thông bằng cách điều chỉnh SFP của bạn từ 1 đến 2,5 Gigabit - không yêu cầu thay đổi thiết bị.
| Product description | |
| Type | BRS20-16TX/4SFP (Product code: BRS20-2000ZZZZ-STCY99HHSESXX.X.XX) |
| Description | Managed Industrial Switch for DIN Rail, fanless design Fast Ethernet Type |
| Part Number | 942170055 |
| Port type and quantity | 20 Ports in total: 16x 10/100BASE TX / RJ45; 4x 100Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100 Mbit/s) |
| More Interfaces | |
| Power supply/signaling contact | 1 x plug-in terminal block, 6-pin |
| Digital Input | 1 x plug-in terminal block, 2-pin |
| Local Management and Device Replacement | USB-C |
| Network size - length of cable | |
| Twisted pair (TP) | 0 - 100 m |
| Single mode fiber (SM) 9/125 µm | see SFP fiber modules see SFP fiber modules |
| Single mode fiber (LH) 9/125 µm (long haul transceiver) | see SFP fiber modules see SFP fiber modules |
| Multimode fiber (MM) 50/125 µm | see SFP fiber modules see SFP fiber modules |
| Multimode fiber (MM) 62.5/125 µm | see SFP fiber modules see SFP fiber modules |
| Network size - cascadibility | |
| Line - / star topology | any |
| Power requirements | |
| Operating Voltage | 2 x 12 VDC ... 24 VDC |
| Power consumption | 15 W |
| Power output in BTU (IT)/h | 51 |
| Software | |
| Switching | Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, Jumbo Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP) |
| Redundancy | HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards |
| Management | Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, IPv6 Management , OPC UA Server |
| Diagnostics | Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump |
| Configuration | Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), Backup config on a remote server when saving, Clear config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, USB-C Management support, Command Line Interface (CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured MIB Support, Context-sensitive Help, HTML5 based Management |
| Security | MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, DoS Prevention Drop Counter, VLAN-based ACL, Ingress VLAN-based ACL, Basic ACL, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login |
| Time synchronisation | PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s , 802.1AS, Buffered Real Time Clock, SNTP Client, SNTP Server TSN 802.1Qbv Support |
| Industrial Profiles | EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol |
| Miscellaneous | Digital IO Management, Manual Cable Crossing, Port Power Down |
| Ambient conditions | |
| Operating temperature | 0-+60 °C |
| Storage/transport temperature | -40-+70 °C |
| Relative humidity (non-condensing) | 1- 95 % |
| Mechanical construction | |
| Dimensions (WxHxD) | 109 mm x 138 mm x 115 mm |
| Weight | 950 g |
| Housing | PC-ABS |
| Mounting | DIN Rail |
| Protection class | IP30 |
| Model | Description | Download |
| BRS20-16TX/4SFP | 20 Ports in total: 16x 10/100BASE TX / RJ45; 4x 100Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100 Mbit/s) | Datasheet |
| BRS20-16TX/4SFP-EEC | 20 Ports in total: 16x 10/100BASE TX / RJ45; 4x 100Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100 Mbit/s) | Datasheet |
