IGS-801T
Nội dung bài viết [hide]

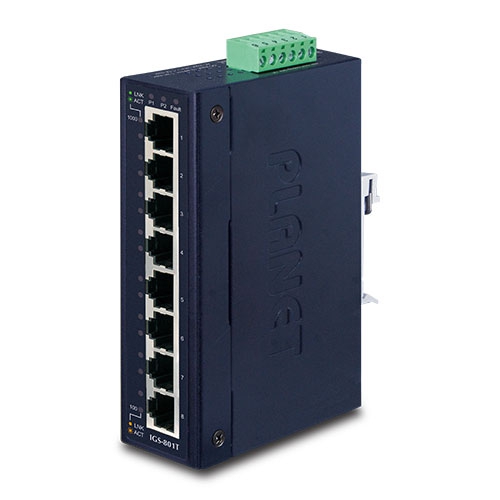

PLANET IGS-801T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 8 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.Its compact IP30-rated metal case features either DIN rail or wall mount for the efficient use of cabinet space.
Energy Saving with Lower Power Consumption
The IGS-801T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features makes the IGS-801T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.
Green Networking
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the IGS-801T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switches to consume less power when they are less active.
Stable Performance under Difficult Environments
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.
| Hardware Specifications | |
|---|---|
| 10/100/1000BASE-T Ports | 8 |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 476g |
| Power Requirements | 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption/ Dissipation | 6.72 watts/23BTU |
| Installation | DIN rail kit and wall-mount ear |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 4K |
| Buffer | 1.5Mbits SRAM packet buffer |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps |
| Jumbo Frame | 9K |
| Network Cables | 10/100/1000BASE-T: Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
