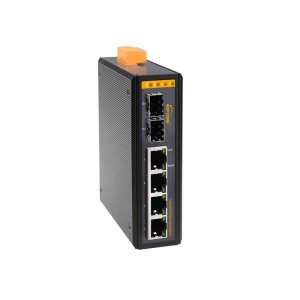

OPT-IES2024
The OPT-IES2024 series industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000Base-FX SFP media conversion in harsh industrial environments. OPT-IES2024 series supports redundant power inputs, IP40 protection class and meets EMC industrial level 4 requirements.
Nội dung bài viết [hide]
The OPT-IES2024 series industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000Base-FX SFP media conversion in harsh industrial environments. OPT-IES2024 series supports redundant power inputs, IP40 protection class and meets EMC industrial level 4 requirements. Its operating temperature ranges from -40 to 85°C. Belonging to Optone Green Ethernet switches series.
| Interface | 4 x Ethernet port (RJ45) 10/100/1000Base-Tx 2 x Optical port (SFP) 1000Base-Fx |
| Optical Port | Available for 1310nm and 1550nm Single mode, and 850nm Multi mode Transfer Distance: up to 120km Connectors: SFP Fiber core: 9/125μm on single-mode fiber, 50/125μm and 62.5μm on multi-mode fiber |
| Ethernet Port | Cable: Cat 5/5e/6 UTP cable Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing |
| Standard | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-T) IEEE802.3z (1000Base-SX/LX/CX/T) IEEE802.3x (Flow control) |
| Switch Properties | MAC Table: 8K Packet Buffer: 1Mbit Switching Delay: <5μs |
| LED Indicators | Power Status, Speed, FX Link/Act, TX Link/Act |
| Power Requirement | Input: 12VDC~48VDC Overload Protection: Support Reverse Connection Protection: Support Redundancy Protection: Support |
| Physical Characteristics | Housing: Metal enclosure Protection Class: IP40 Dimensions: 36 x 120 x 103mm Weight: 0.47kg Installation: DIN-Rail or Panel mounting |
| Environmental Limits | Operating Temperature: -40°C to 85°C Storage Temperature: -40°C to 85°C Operating Humidity: 10% to 95% RH (non-condensing) Storage Humidity: 5% to 95% RH (non-condensing) |
| Industrial Standard | EMI: FCC/CE/LVD/EMC EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Warranty | 5 years |
| Model No. | Description |
|---|---|
| OPT-IES2024 | 2*SFP Fiber ports to 4*10/100/1000Base-Tx |
| Optional SFP | |
| SFP-SX-MM-0205I | SFP，1.25G，850nm，0.5km，2xLC，Industrial |
| SFP-LX-SM-0220I | SFP，1.25G，1310nm，20km，2xLC，Industrial |
| SFP-LX-SM-0240I | SFP，1.25G，1310nm，40km，2xLC，Industrial |
| SFP-ZX-SM-0280I | SFP，1.25G，1550nm，80km，2xLC，Industrial |
