MAR1030-CCTTTTTTTTTTTTTTTTTTTTTTTTSM9HPHHXX.X.

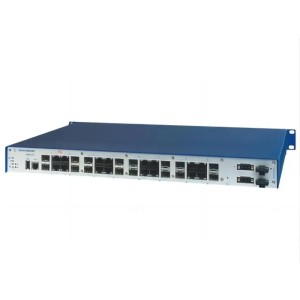

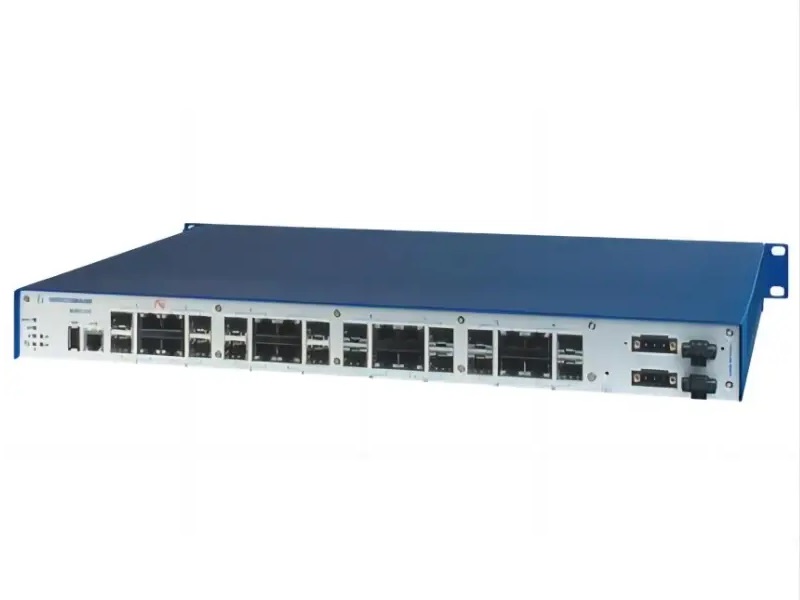

MAR1030-CCTTTTTTTTTTTTTTTTTTTTTTTTSM9HPHHXX.X. là bộ chuyển mạch công nghiệp có quản lý Layer 2 của hãng Hirschmann với 24 cổng 10/100BASE-TX, 2 cổng Combo 1G (10/100/1000BASE-TX.
Nội dung bài viết [hide]
MAR1030-CCTTTTTTTTTTTTTTTTTTTTTTTTSM9HPHHXX.X. là bộ chuyển mạch công nghiệp có quản lý Layer 2 của hãng Hirschmann với 24 cổng 10/100BASE-TX, 2 cổng Combo 1G (10/100/1000BASE-TX, RJ45 với khe cắm SFP 100/1000BASE-FX). Thiết kế kiểu dáng Rack-mount, không quạt và các bộ phận được tối ưu hóa để giảm thiểu sự sinh nhiệt và MTBF cao (thời gian chờ giữa các lần lỗi).
| Miêu tả sản phẩm | |
| Miêu tả | Bộ chuyển mạch công nghiệp có quản lý Fast Ethernet chuẩn IEEE 802.3, Rack-mount 19", thiết kế không quạt, Store-and-Forward-Switching |
| Số cổng | 24 cổng 10/100BASE-TX, RJ45 2 cổng Combo 1G (10/100/1000BASE-TX, RJ45 với khe cắm SFP 100/1000BASE-FX) |
| Nguồn | 110/250 VDC, 110/230 VAC |
| More Interfaces | |
| V.24 interface | 1 x RJ11 socket |
| USB interface | 1 x USB to connect auto-configuration adapter ACA21-USB |
| Network size - length of cable | |
| Twisted pair (TP) | \\\ GE 1 and 2: 0-100 m \\\ FE 1 and 2: 0-100 m \\\ FE 3 and 4: 0-100 m \\\ FE 5 and 6: 0-100 m \\\ FE 7 and 8: 0-100 m \\\ FE 9 and 10: 0-100 m \\\ FE 11 and 12: 0-100 m \\\ FE 13and 14: 0-100 m \\\ FE 15 and 16: 0-100 m \\\ FE 17 and 18: 0-100 m \\\ FE 19 and 20: 0-100 m \\\ FE 21 and 22: 0-100 m \\\ FE 23 and 24: 0-100 m \\\ |
| Single mode fiber (SM)9/125 µm | GE 1 and 2: cf. SFP modules M-FAST SFP or M-SFP \\\ |
| Single mode fiber (LH)9/125 µm (long haul transceiver) | GE 1 and 2: cf. SFP modules M-FAST SFP or M-SFP \\\ |
| Multimode fiber (MM)50/125 µm | GE 1 and 2: cf. SFP modules M-FAST SFP or M-SFP \\\ |
| Multimode fiber (MM)62.5/125 µm | GE 1 and 2: cf. SFP modules M-FAST SFP or M-SFP \\\ |
| Line - / star topology | any |
| Ring structure(HIPER-Ring) quantity switches | 10ms (10 switches),30ms (50 switches),40ms (100 switches),60ms (200 switches) |
| Power requirements | |
| Current consumption at230 V AC | Power supply 1: 170 mA max, if all ports are equipped with fiber |
| Operating Voltage | Power supply 1: 110/250 VDC, 110/230 VAC ; Power supply 2: not assembled |
| Power consumption | max. 38.5 W |
| Power output in BTU (IT)/h | max. 132 |
| Software | |
| Switching | Disable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCPPrioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), Jumbo Frames, VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Double VLAN Tagging (QinQ),Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier (v1/v2/v3) |
| Redundancy | Advanced Ring Configuration for MRP, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Fast HIPER-Ring, Link Aggregation with LACP, Media Redundancy Protocol (MRP)(IEC62439-2), Redundant Network Coupling, Sub Ring Manager, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards, RSTP over MRP |
| Management | Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet |
| Diagnostics | Management Address Conflict Detection, Address Relearn Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Port Monitoring withAuto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, PortMirroring N:1, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump |
| Configuration | AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, DHCP Server: Option 43, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay withOption 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help |
| Security | IP-based Port Security, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, RADIUS VLAN Assignment, Multi-Client Authentication perPort, MAC Authentication Bypass, Access to Management restricted by VLAN, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, SNMPLogging, Local User Management, Remote Authentication via RADIUS, Password change on first login |
| Time synchronisation | SNTP Server, PTP / IEEE 1588 in software, realtime clock with energy buffer |
| Industrial Profiles | EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), PROFINET IO Protocol |
| Miscellaneous | Manual Cable Crossing |
| Ambient conditions | |
| Operating temperature | 0-+60 °C |
| Storage/transport temperature | -40-+85 °C |
| Relative humidity (non-condensing) | 5-95 % |
| Mechanical construction | |
| Dimensions (WxHxD) | 448 x 44 x 310 mm (448 x 44 x 345 mm if power supply type M or L) |
| Weight | 4.0 kg |
| Mounting | 19" control cabinet |
| Protection class | IP30 |
