AN-GSHDSL-CH
Nội dung bài viết [hide]

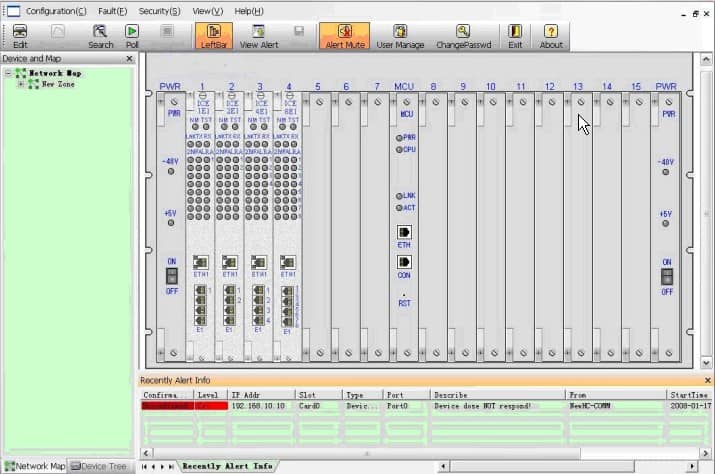

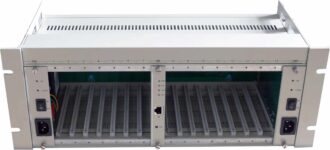

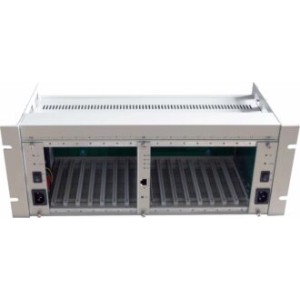

AN-GSHDSL-CH has total 18 slots and out of 18 slots, one left most & one right most slots marked with PWR are used for power supply cards and one Center slot marked MCU used for management card. In case of power supply hot standby redundancy (1+1) is provided, if one PWR card fails then other one can take care for the power supply requirement of the rack and the rack will work normally. Each PWR card has been capable to meets power requirement of the fully configured rack has total 18 slots and out of 18 slots, one left most & one right most slots marked with PWR are used for power supply cards and one Center slot marked MCU used for management card. In case of power supply hot standby redundancy (1+1) is provided, if one PWR card fails then other one can take care for the power supply requirement of the rack and the rack will work normally. Each PWR card has been capable to meets power requirement of the fully configured rack.
Equipment dimension: 4U height & 19” rack Mountable
Power Supply: -48V DC or 220V AC
Redundancy: In Power Supply and it is hot swappable
Temperature: 0°C to +55°C
Humidity: 0 – 95% non-condensing
Quý khách hàng sau khi chọn được sản phẩm phù hợp có thể mua hàng bằng 2 hình thức sau:
1 Trực tiếp:
Quý khách để lại thông tin ở phần Nhận Báo Giá hoặc Liên Hệ, bao gồm SĐT - Sản phẩm muốn mua - Địa chỉ nhận hàng. Nhân viên của Hải Phong sẽ liên hệ tới bạn trong vòng 12h.
Trân trọng cảm ơn...!
