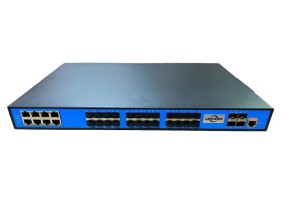

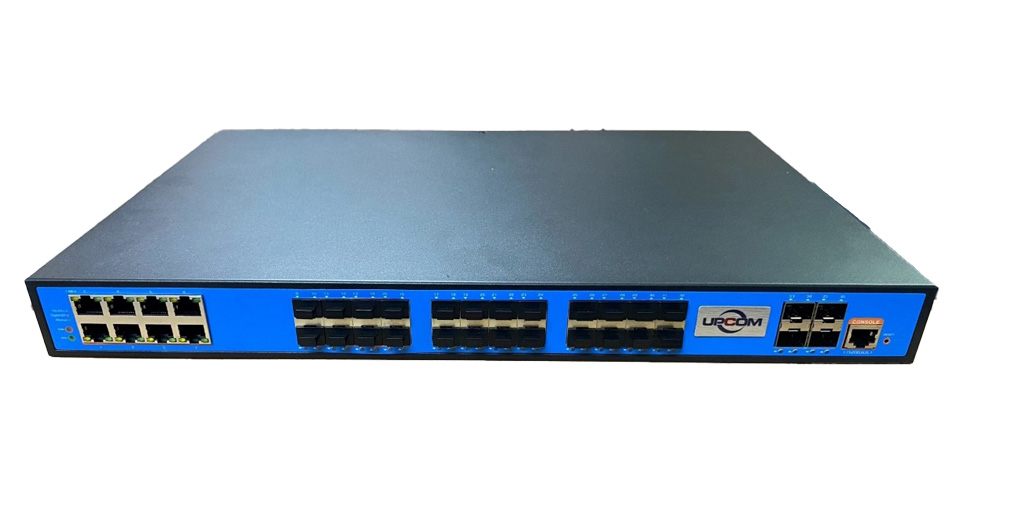

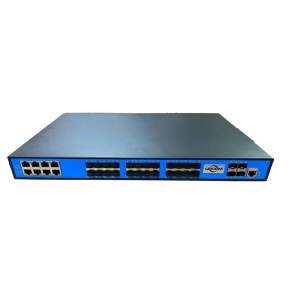

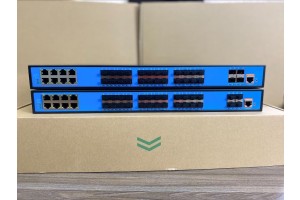

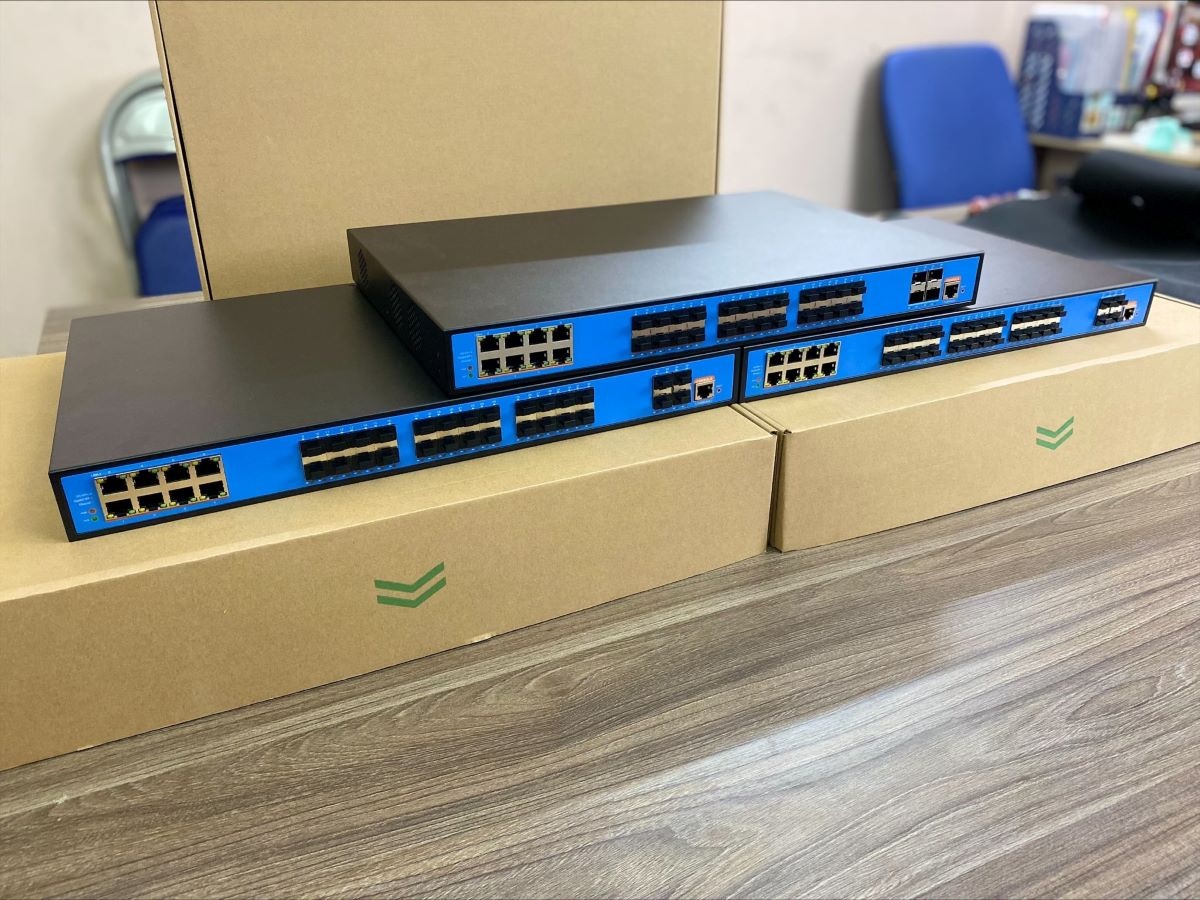

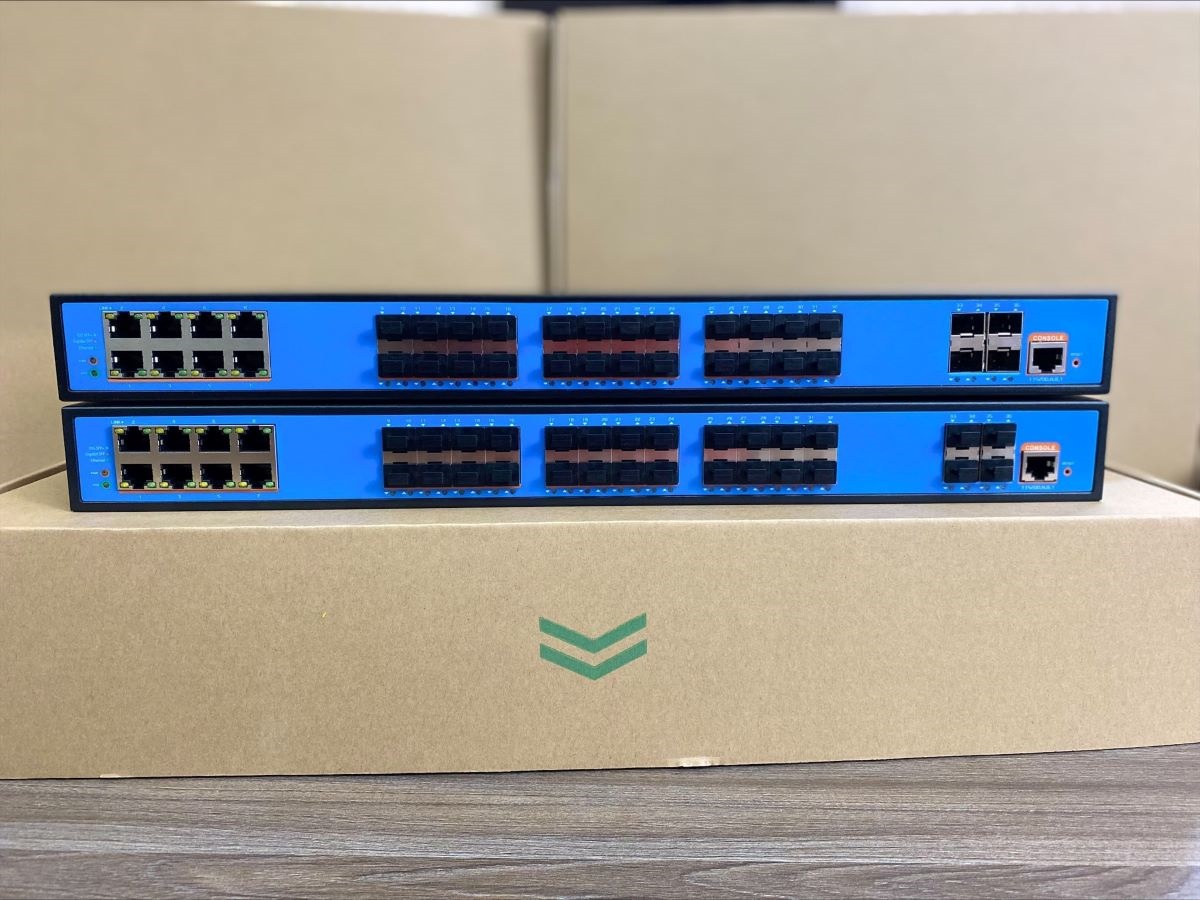

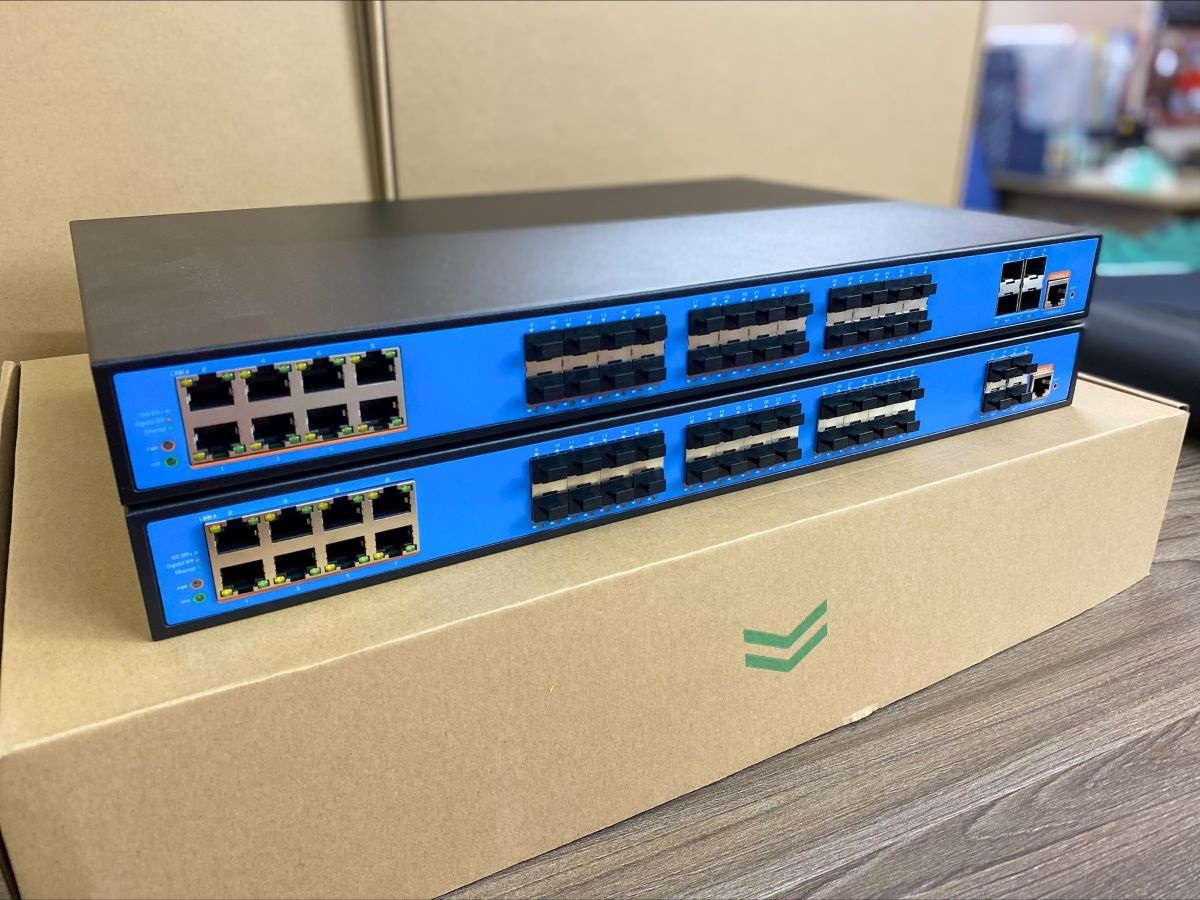

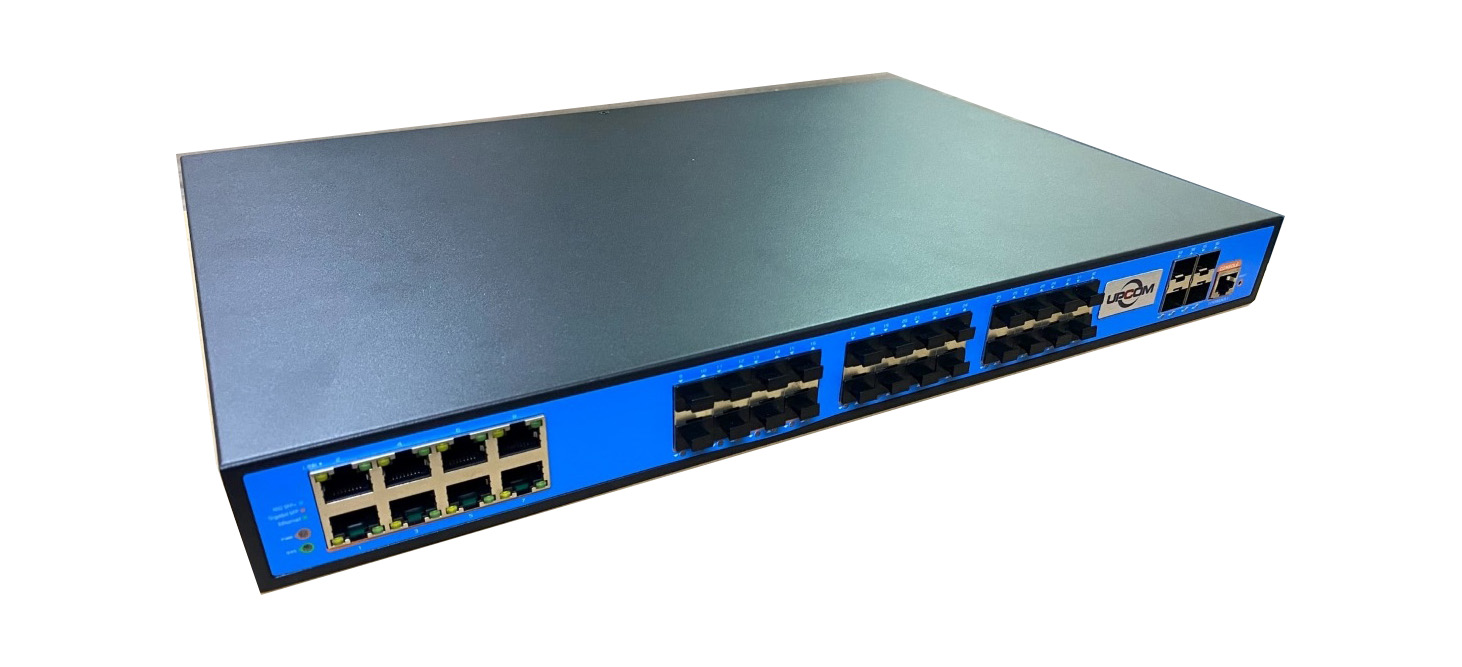

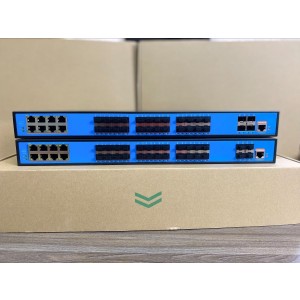

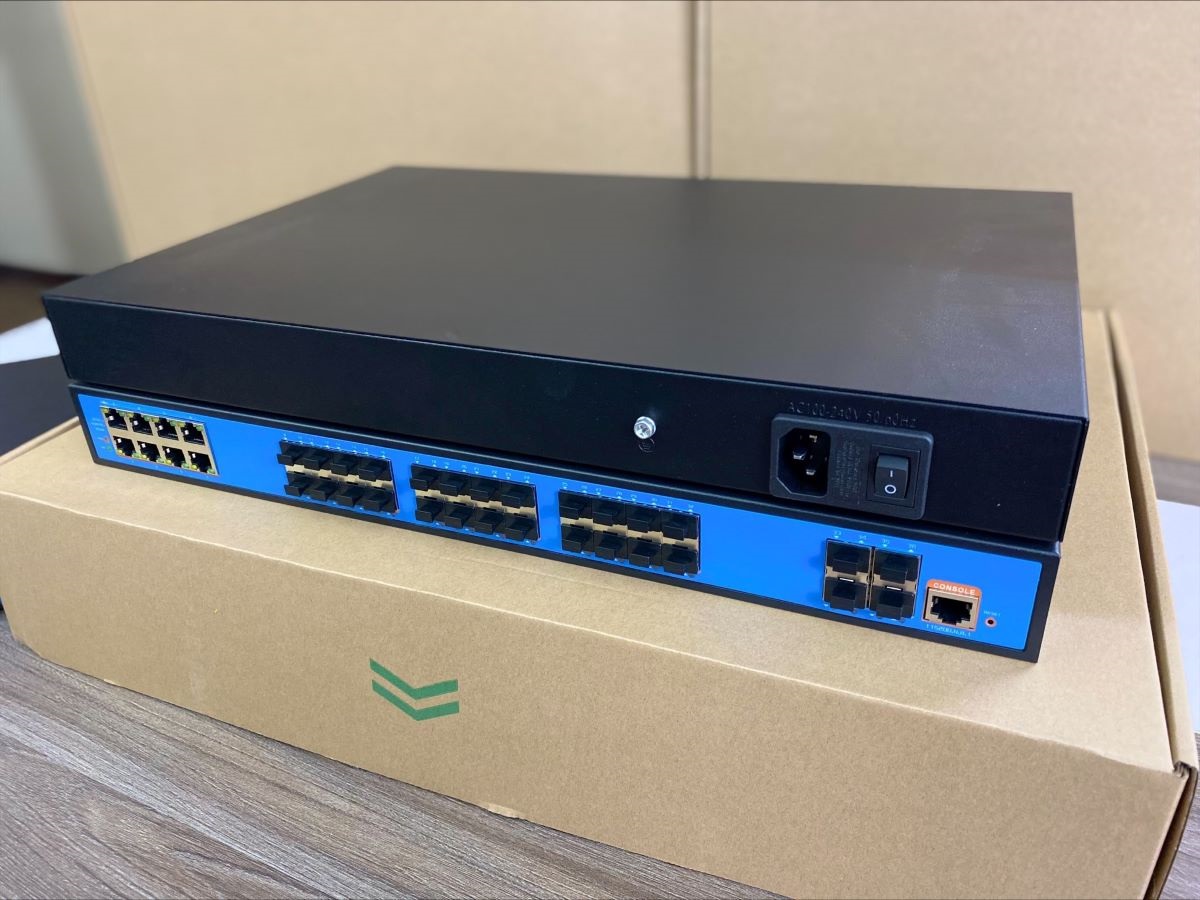

IES1032-24GS-4C
IES1032-24GS-4C là bộ chuyển mạch Ethernet với chức năng của POE có quản lý, Layer 2, hỗ trợ 8 cổng 10/100/1000M + 24 khe cắm SFP 100/1000M + 4 khe cắm SFP+ 1/2.5/10G.
Nội dung bài viết [hide]
IES1032-24GS-4C là bộ chuyển mạch Ethernet với chức năng của POE có quản lý, Layer 2, hỗ trợ 8 cổng 10/100/1000M + 24 khe cắm SFP 100/1000M + 4 khe cắm SFP+ 1/2.5/10G.
Hỗ trợ nhiều giao thức dự phòng mạng STP/RSTP/MSTP (<50ms) và (ITU-T G.8032) ERPS để cải thiện độ kế nối của mạng và sao lưu liên kết. Khi mạng một chiều gặp sự cố, thiết bị có thể được khôi phục nhanh chóng để đảm bảo kết nối không bị gián đoạn cho các ứng dụng quan trọng.
|
Model |
IES1032-24GS-4C |
|
Interface |
8*10/100/1000Base-T/TX PoE ports (Data/Power) 24*100/1000M Base-X uplink SFP slot ports (Data) 4*1G/2.5G/10G Base-X uplink SFP+ slot ports (Data) 1*Console RS232 port (115200, N,8,1) |
|
Network Management Tape |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X IEEE802.3ae 10GBase-SR/LR IEEE802.3x |
|
Ethernet Port Feature |
Port1-8 10/100/1000Base-T, auto-sensing, full/half duplex MDI/MDI-X self-adaption |
|
SFP Port Characteristic |
1G/2.5G/10G SFP fiber interface, default matching fiber modules, need to buy separately, (optional single-mode/multi-mode, single fiber / dual fiber module, LC) |
|
Forwarding Mode |
Store and Forward |
|
Switching Capacity |
598Gbps |
|
Forwarding Rate |
107.14Mpps |
|
MAC Address Table |
32K |
|
Buffer Memory |
32M |
|
Twisted Pair Transmission |
10BASE-T:Cat3,4,5 UTP(≤100 meter) ; 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or later UTP(≤100 meter) |
|
Optical cable |
Multi-mode:850nm 0~300M(10G),850nm 0~550M (1.25G) Single-mode:1310nm 0~40KM,1550nm 0~120KM. |
|
Total PWR / Input Voltage |
130W/(AC100-220V) |
|
Power Consumption |
Standby:<8W; full load:<130W |
|
LED |
Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Orange),9-36(Link/Act)/ (Green); POE indicator: PoE (Green) SYS:(Green) |
|
Reset Switch |
Yes, One-button factory reset |
|
Power Supply |
Built-in power supply; AC:100 ~220V 50-60Hz |
|
Operation TEMP / Humidity |
-20~+55°C;5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+80°C;5%~95% RH Non condensing |
|
Dimension(L*W*H) |
440*290*44.5mm |
|
Net /Gross Weight |
<4kg /<5kg |
|
Installation Method |
Desktop.19-inch 1U cabinet installation |
|
Protection |
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV |
|
Protection Level |
IP30 |
|
Certification |
CCC; CE mark, commercial;CE/LVD EN60950; |
|
Interface |
IEEE802.3x flow control (full duplex) Broadcast storm suppression for port rate support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps. Temperature protection setting Energy saving configuration of port EEE Ethernet |
|
Layer3 Function |
L2+ network management function layer3 software is non line speed forwarding, supporting different network segments communication between different VLAN Static routing / default routing, 128 maximum entries ARP protocol, 1024 maximum entries |
|
VLAN |
Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Access, Trunk, Hybrid three types of port configuration Support QinQ configuration |
|
Port Aggregation |
Support LACP Support static polymerization Support the largest 8 aggregation groups, each aggregation group supports 8 ports. |
|
Spanning Tree |
STP(IEEE802.1d) RSTP(IEEE802.1w) MSTP(IEEE802.1s) |
|
Industrial Ring Network Protocol |
Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. The self-healing time of the ring network is less than 20ms |
|
Multicast
|
Support IGMP Snooping V1/V2 and support 1024 multicast groups at most. Support the user's quick departure mechanism Support MLD Snooping V1/V2 Support multicast VLAN |
|
Image |
Bi-directional traffic mirroring supporting the basic port |
|
QoS |
Diff-Serv QoS Each port supports 8 output queues Support 802.1p/DSCP priority mapping Support queue scheduling mechanism (SP, WRR, SP+WRR) priority tag Mark/Remark stream based packet filtering Support for stream-based redirection Support flow-based speed limit |
|
ACL |
Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL. Support ACL based on port and VLAN |
|
Safety Characteristics
|
Support user grading management and password protection Support IEEE802.1X authentication / centralized MAC address authentication Support AAA&RADIUS authentication Support the number of MAC address learning restrictions Support MAC address black hole Support SSH 2 to provide secure passwords for user login. Support SSL to ensure data transmission security Support port isolation Support the speed limit function of ARP message Support IP source address protection Support ARP intrusion detection function Support against DoS attacks Support port broadcast message suppression Support host data backup mechanism Binding capabilities of IP+MAC+VLAN+ ports |
|
DHCP |
DHCP Client DHCP Snooping |
|
System Requirements
|
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; 5 types and above Ethernet cable; TCP/ IP, network adapter and network operating system (such as Microsoft Windows, Linux or Mac OS X) are installed on computers in the network. |
