OPT-6016

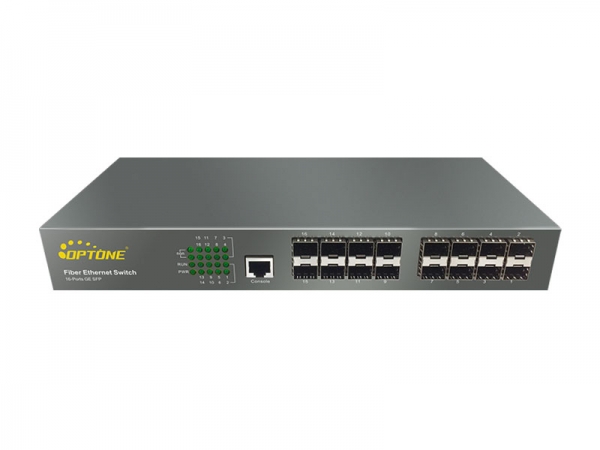

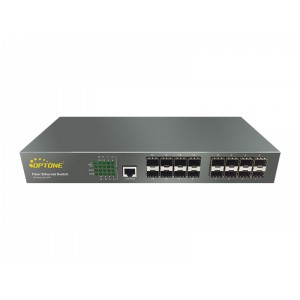

OPT-6016 L2 Fiber Ethernet Switch provide 16-port 1000M SFP fiber ports, the SFP type is flexiable according to user needing, such as 1000Base-T, 1000Base-SX, 1000Base-LX and so on. OPT-6016 L2+ provide easier manageability, stable performance and excellent quality, with a higher cost performance. For small optical Ethernet and optical network with special needs.
Nội dung bài viết [hide]
OPT-6016 L2 Fiber Ethernet Switch provide 16-port 1000M SFP fiber ports, the SFP type is flexiable according to user needing, such as 1000Base-T, 1000Base-SX, 1000Base-LX and so on. OPT-6016 L2+ provide easier manageability, stable performance and excellent quality, with a higher cost performance. For small optical Ethernet and optical network with special needs.
| Interface | 1 x Console port (RJ45) 16 x Optical port (SFP) 1000Base-Fx |
| Optical Port | Available for 1310nm and 1550nm Single mode, 850nm Multi mode Transfer Distance: up to 120km Connectors: SFP Fiber core: 9/125μm on single-mode fiber; 50/125μm and 62.5/125μm on multi-mode fiber |
| Standard | IEEE 802.3ab（1000Base-T） IEEE 802.3z（1000Base-SX/LX/CX/T） |
| Switch Properties | MAC Table: 4K Packet Buffer: 256K Switching Delay: <5μs |
| LED Indicators | Power Status, System Status, FX Link/Act |
| Power Requirement | Input: AC 85~265V |
| Physical Characteristics | Housing: Metal enclosure Dimensions: 300 x 135 x 42.3mm Weight: 1.3kg |
| Environmental Limits | Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Operating Humidity: 10% to 90% RH (non-condensing) Storage Humidity: 5% to 90% RH (non-condensing) |
| Warranty | 3 years |
| Model No. | Description |
|---|---|
| OPT-6016 | 16*GE SFP Fiber ports and 1*Console port |
| Optional SFP | |
| SFP-SX-MM-0205 | SFP，1.25G，850nm，0.5km，LC |
| SFP-LX-SM-0220 | SFP，1.25G，1310nm，20km，LC |
| SFP-LX-SM-0240 | SFP，1.25G，1310nm，40km，LC |
| SFP-ZX-SM-0280 | SFP，1.25G，1550nm，80km，LC |
Quý khách hàng sau khi chọn được sản phẩm phù hợp có thể mua hàng bằng 2 hình thức sau:
1 Trực tiếp:
Quý khách để lại thông tin ở phần Nhận Báo Giá hoặc Liên Hệ, bao gồm SĐT - Sản phẩm muốn mua - Địa chỉ nhận hàng. Nhân viên của Hải Phong sẽ liên hệ tới bạn trong vòng 12h.
Trân trọng cảm ơn...!
