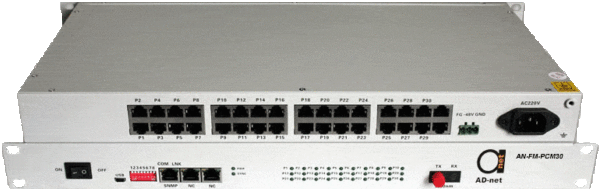

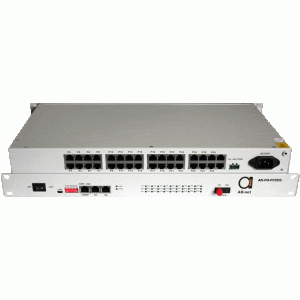

AN-FM-PCM30
This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities.
Nội dung bài viết [hide]
This equipment uses design of ultra large scale integrated circuit, and its outward appearance is succinct. The merits include easy installation and debugging, unnecessary for maintenance and steady performance. It is suitable in business for communication operator, government and kinds of entities.
AN-FM-PCM30 fiber mux can provide 1-8 channels, 1-16 channels, 1-24 channels, or 1-30 channels telephone through optical cable, the network application is point-to-point, supporting FXO/FXS. It has solved telephone transmission problem of edge customers. This equipment uses special digital multiple-connected chip whose function is formidable, and it integrates nearly all the digital logical function of equipment, thus remarkably enhancing product performance and reducing cost.
Additional channels of E1, Ethernet and RS-232 can be added upon request
Scenario Nr1: Full connection scenario, where all possible connections are used – 30 FXS/FXO, RS-232, Ethernet and 4E1
Scenario Nr.2: 1 – 30 FXS to 1 – 30 FXS configuration, clear channel
| AN-FM-PCM30 |
30 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, AC110/220V or DC-48V; |
| AN-FM-PCM30/4E1/ETH |
30 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), AC110/220V or DC-48V; |
| AN-FM-PCM30/4E1/ETH/RS-232 |
30 channels voice on fiber, SC/FC connector, FP1310nm,single fiber 20km, voice interface supports FXO or FXS, Ethernet port(10/100 M adapt), 4E1 port (E1 support 75ohm or 120ohm), and RS232 port AC110/220V or DC-48V; |
